Available up to a filtration efficiency of 99.999% for 0.3 micron particle size. (Overall filtration efficiency by using discrete particle count efficiency test method or by Photometer point to point scan test with PAO / DOP challenge aerosol).
Suitable for use as filter grades H13 and H14 of EN1822 and suitable for ISO Class 5 operation as per ISO 14644.
Can be manufactured with or without "Flange" or "Header".
Optional perforated metal or expanded metal guard.
Available in casing thickness from 0.5 to 1.5 mm in MOC variants of Galvanized sheet.
Steel, Aluminium or Stainless steel with suitable surface finish.

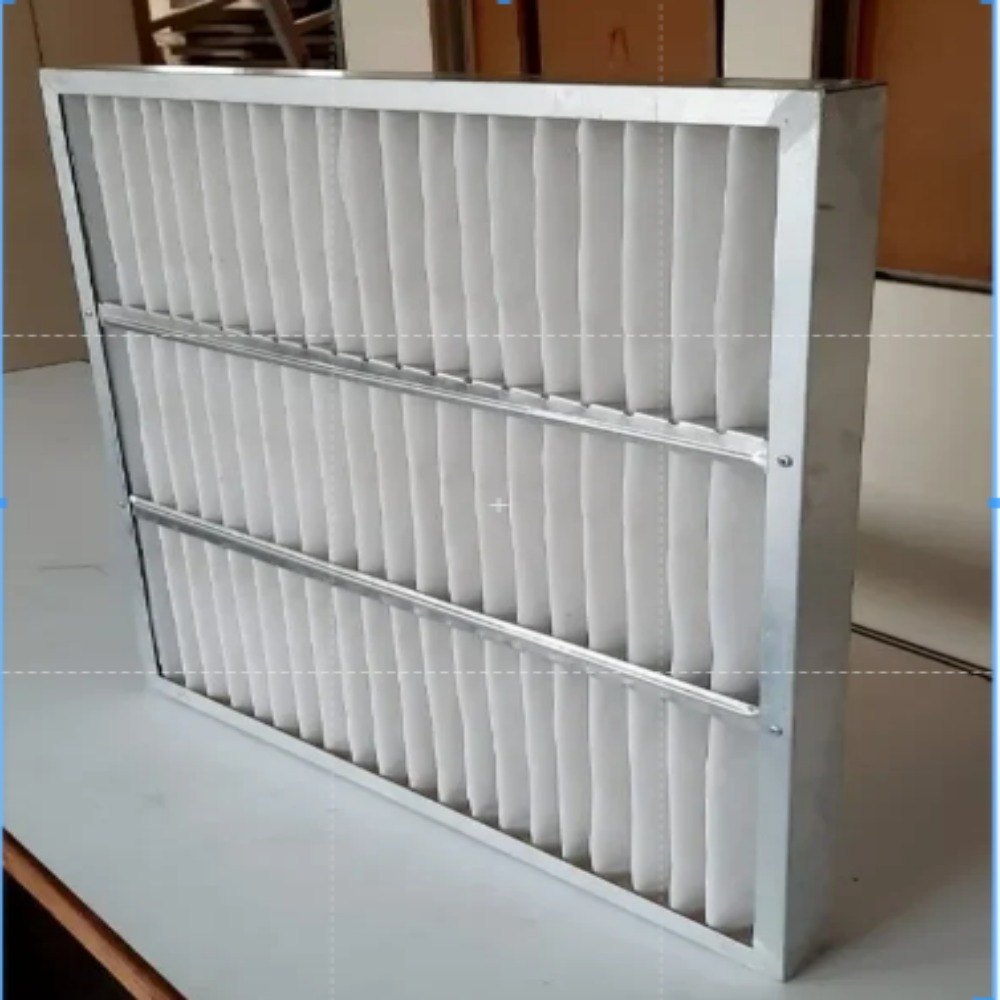

Pre filter
Available up to a filtration efficiency of 95% for 10 micron particle size. (Overall filtration efficiency by using discrete particle count efficiency test method).
Suitable for use as filter grades G1 to G4 of EN 779 and MERV 1 to 7 of Ashrae 52.2.
Can be manufactured with or without "Flange" or "Header".
Optional perforated metal or expanded metal guard.
Available in casing thickness from 0.5 to 1.5 mm in MOC variants of Galvanized.
Sheet steel, Aluminium or Stainless steel with suitable surface finish.
